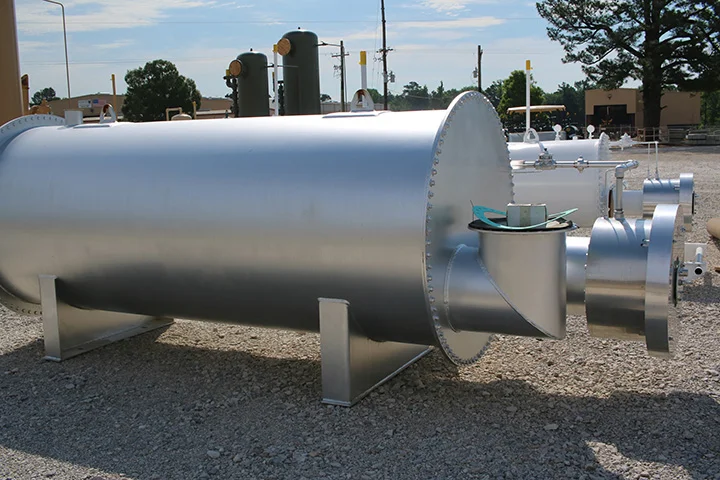

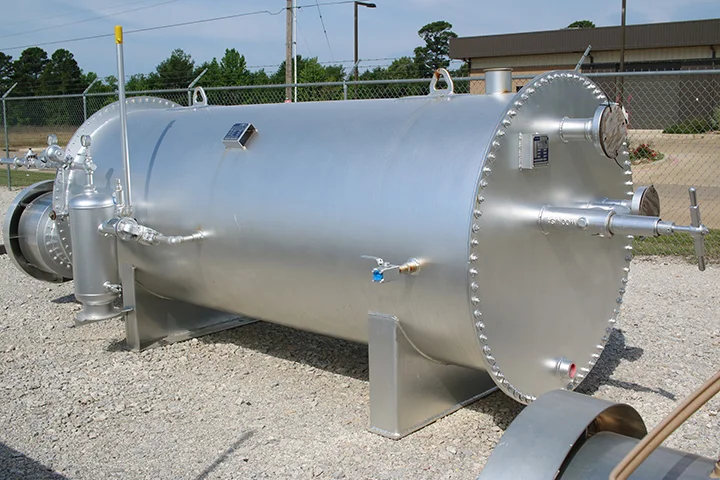

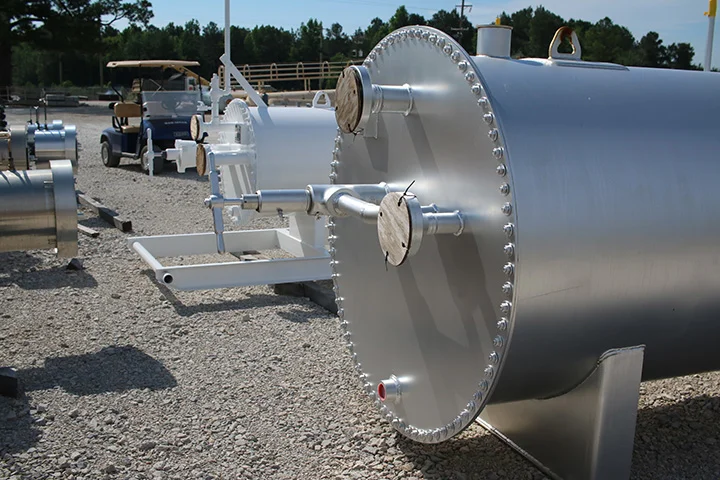

INDIRECT LINE HEATER

48" OD x 10' 0" E/E 1.0MM Btu/Hr Indirect Stand Alone Line Heater.

Preheat Coil: 4 Pass 2" XX-Hvy 6,500 PSI With 1-13/16" API RTJ Inlet Flange. Tectrol Model 78L Long Nose Heater Choke.
Expansion Coil: 6 Pass 3" X-Hvy 1,440 PSI With 3" ANSI 600# RF Outlet Flange.

Accessories Included & Installed.
(1) Fuel Gas Manifold With 1" Bellgas 6300 Regulator 46-95#. Relief Valve,
1" Set @ 125 PSI, Stack, Cover. Pressure Gauge, 0-200 PSI With Isolation
Valve. Burner Regulator, 0-35 PSI. Kimray 112 SMT Burner Valve.
Kimray T12 Temperature Controller With Thermowell.
(1) Fittings, 1" Piping To Burner, 1/4" Pilot With Block Valve, & SS Instrumentation. (1) 1.0MM Flame Arrestor Burner.
(1) 10" x 2' 0" S/S 250 PSIG ASME Code Vertical Fuel Gas Scrubber With
Safety Shut Off Float Assembly.

Ship Loose Accessories:
(1) Fire Tube Smoke Stack, Gasket, & Hardware.
(2) Concrete Foundation Pier Blocks, 8" Square x 4' 0" Long.

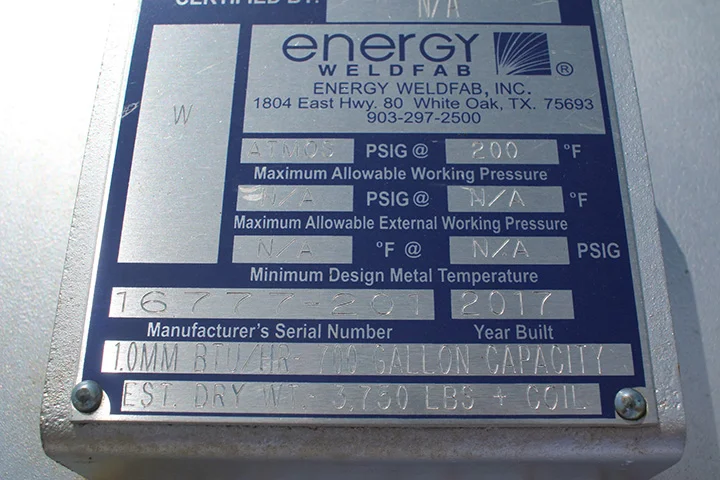

Media Blast, Paint Aluminum, Smoke Stack High Heat Black. Line Heater S/N 16777-201
