INDIRECT LINE HEATERS

(Also known as “line heaters”) Energy, in the form of heat, is transferred from a submerged fire-tube wall into bath fluid which is transferred into process coils via convection. Indirect fired heater temperatures tend to be lower than other heaters and are atmospheric, with an expansion tank to compensate for change in bath fluid density with varying bath temperatures.

More about Indirect Line Heaters:

  • Process bath heaters have few moving parts, require very little maintenance, and can achieve efficiencies of 70% without the use of an economizer. Indirect fired heaters designed for hazardous area classifications and control system components meet CSA, NFPA and UL recommendations.

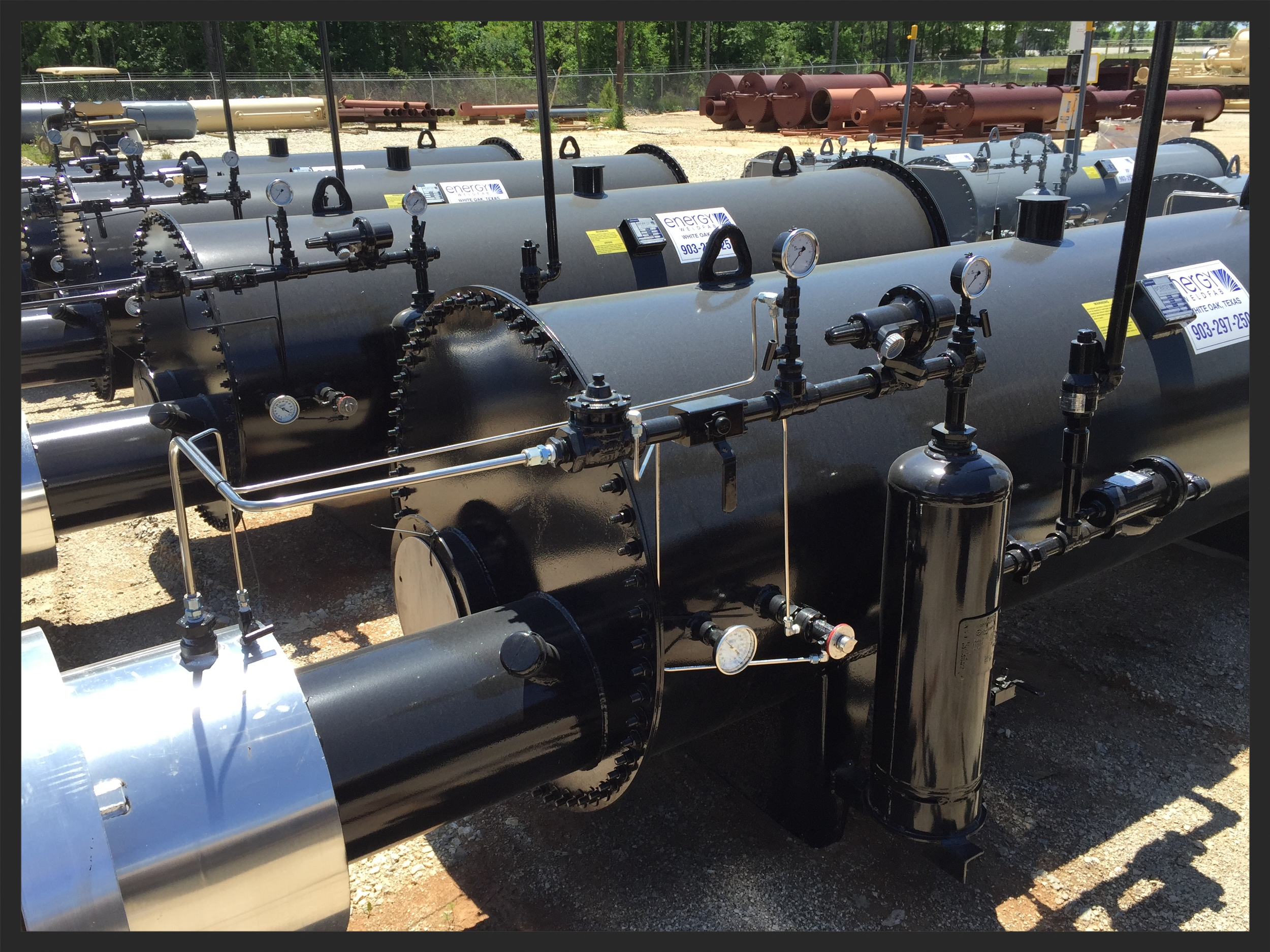

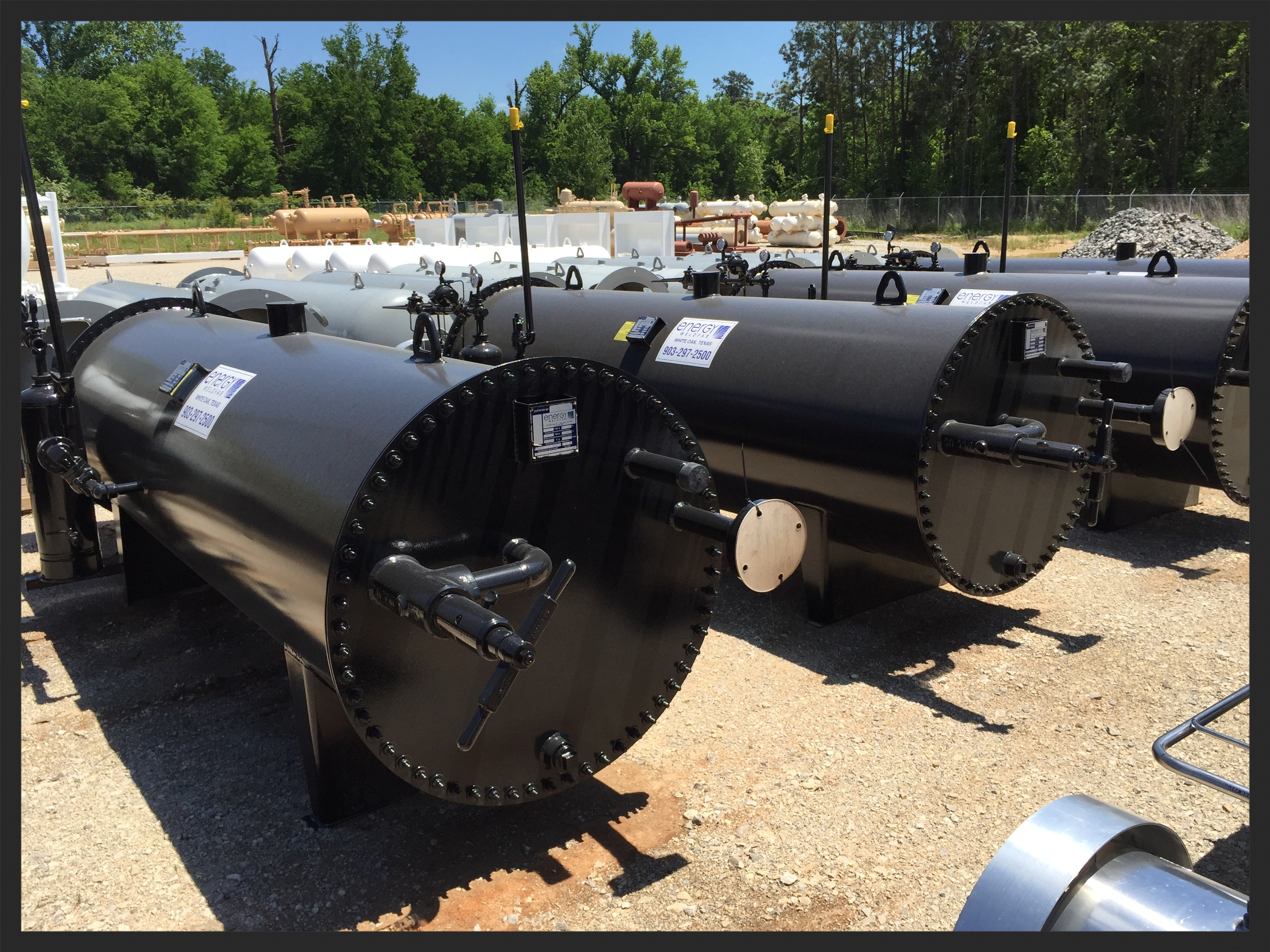

Energy Weldfab Designs and Manufactures Indirect Lineheater’s using the “Water Bath” design.

We stock 500,000 thru 1,500,000 Btu/Hr Units.

Standard Design

6,500 Thru 15,000 PSI Coils

REMOVABLE FIRETUBE, COIL AND SMOKE STACK

FLAME ARRESTOR BURNER

FUEL GAS MANIFOLD WITH FISHER TYPE 64 REGULATOR, KIMRAY 112 SERIES FUEL

VALVE,   MAIN GAS BLOCK VALVE, PILOT BLOCK VALVE AND 0-200 PSI PRESSURE

GAUGE WITH  ISOLATION VALVE.

KIMRAY T-12 TEMPERATURE CONTROLLER WITH SEPARABLE SOCKET

0-250 DEG. F. THERMOMETER WITH THERMOWELL

2" DRAIN CONNECTION WITH PLUG

FILL HATCH WITH COVER

1" FUEL GAS PREHEAT COIL

FISHER TYPE 630 REGULATOR

FUEL GAS SCRUBBER WITH SAFETY SHUT-OFF VALVE AND DRAIN COCK

125 PSI RELIEF VALVE BETWEEN FISHER REGULATOR AND SCRUBBER

* LONG NOSE ADJUSTABLE CHOKE

CONCRETE FOUNDATION BLOCKS

Optional

HIGH TEMPERATURE SHUT-DOWN

STACK DOWN-DRAFT DIVERTER

BIRD GUARDS

SHELL INSULATION WITH ALUMINUM JACKET

SPECIAL WELL STREAM COILS OF REQUIRED SIZE

SHORT NOSE CHOKES OR FIXED ORIFICE CHOKES

SPECIAL ALLOY CHOKE TRIM

NACE DESIGN FOR SOUR SERVICE

SKID MOUNTING WITH SEPARATORS INCLUDING INTER-CONNECTING PIPING AND TUBING


ENERGY WELDFAB CAN ADJUST DESIGN TO ACCOMMODATE CUSTOMER’S NEEDS.
